Electron Heady Duty Struts

All Electron legs are made with 7075 T6 aluminium, anodized, and laser engraved the Electron logo



The legs are provided with two flat surfaces to limit how much the lower arm can flex in a heavy landing, thus also assuring that the spring always stays within its elastic limitations and avoiding spring fatigue.



Electron provide the correct size legs with each combo, however the following list shows all available struts should your model require any different sizes.

* The axle hole has a tolerance of  +0.03 / +0.05

Weight aproximate for each leg:

         ER-40 leg: 110gr

         ER-50 leg: 140gr

Main legs dimensions

ER30

ER40

ER50

Conection pin diameter (mm)

Axle wheel diameter (mm)

Conection pin diameter (mm)

Axle wheel diameter (mm)

Conection pin diameter (mm)

Axle wheel diameter (mm)

6

5

6

6

8

6

10

8

ER30

ER40

ER50

Lenght (mm)

Offset (mm)

Lenght (mm)

Offset (mm)

Lenght (mm)

Offset (mm)

110

14

129

20

122

12

141

22

132

17

151

25

123

16

125

11

126

9

127

4

128

2

132

22

136

11

138

5

138

21

146

17

147

no

147

6

148

23

153

11

155

2

163

13

165

5

168

21

173

2

173

10

183

6

183

17

193

11

150

16

153

no

160

22

163

2

166

16

168

2

170

17

175

21

174

1

178

5

180

22

184

5

190

16

193

2

200

21

204

2

Please call to order

Please call to order

All Electron legs are made with 7075 T6 aluminium, anodized, and laser engraved the Electron logo. The nose leg is equipped with an internal compression spring. It is more sensitive to absorb small stones in the runway and prevent the nose from bouncing due to the low load on this leg.

Electron provide the correct size legs with each combo, however the following list shows all available struts should your model require any different sizes.

 Please call to order

Nose leg dimensions

ER30

ER40

ER50

50 wheel (mm)

-

60, 70 wheel (mm)

75, 80 wheel (mm)

75, 80 wheel (mm)

90 wheel (mm)

110

115

120

130

140

160

155

160

165

170

175

180

190

195

150

157

158

167

193

200

198

205

210

217

223

230

Behotec Struts

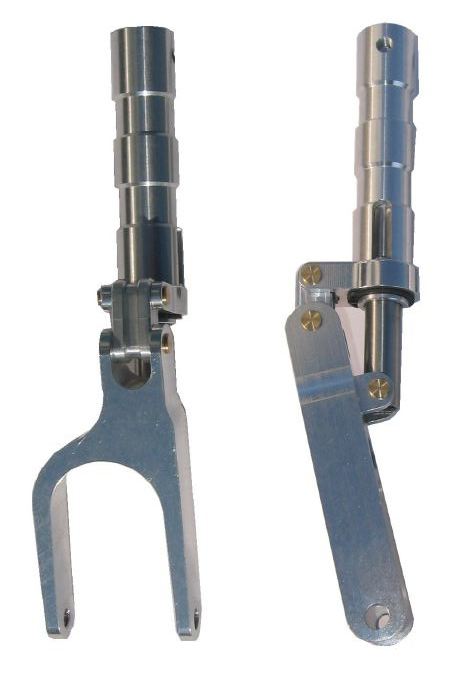

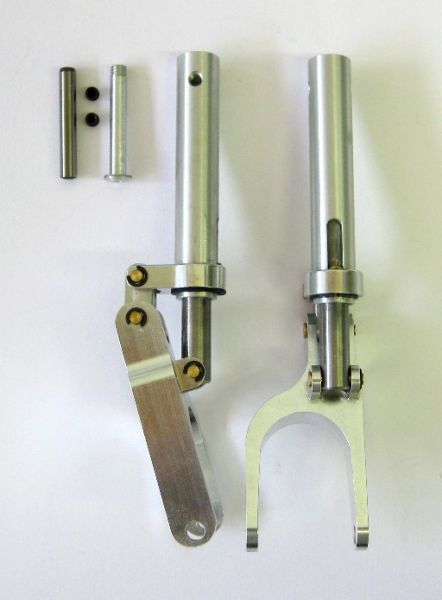

New C36/C40 Behotec heavy duty all terrain struts with Swing arms



Specifically designed to work with our E Brakes


Made from high strength aluminium and the quality of manufacturing that you are accustomed to and expect from Behotec. These struts are pre-drilled for 6mm pins. The angle of the swing arm can be modified by using different connecting rods. Designed for models up to 16Kgs (35lbs)


Available in the following sizes:
NL140VE, 140mm long, wheel size up to 75 mm: $US 80
NL150VE, 150mm long, wheel size up to 90 mm:
$US 85

NL155VH Mains Tutor Set, 155mm long for CARF Tutor Set (Left and Right): $US210

NL183 Tutor 183mm Trailing link strut: $US 95

NL195 SIAI HFW 195mm Main Trailing link strut CARF Maschetti: $US 105

FB215 SIAI 215 mm Trailing link strut CARF Marchetti: $US150



New C50 Behotec heavy duty all terrain struts with Swing arms

Specifically designed to work with our E Brakes.

Heavy duty all terrain single-sided swing arm struts made from high strength aluminium and the quality of manufacturing that you are accustomed to and expect from Behotec. These struts are pre-drilled for 8mm pins. Designed for models up to 30Kgs (66lbs)

Available in the following sizes:

170mm NL170-VHE: $US 115
180mm NL180-VHE: $US 120
188mm for C-ARF and Tomahawk Design 2.5m Viper NL188-VHE: $US 125
190mm NL190-VHE: $US 125
200mm NL200-VHE: $US 130

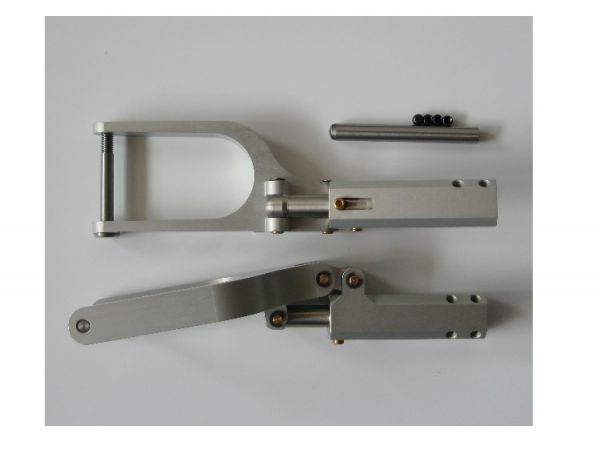

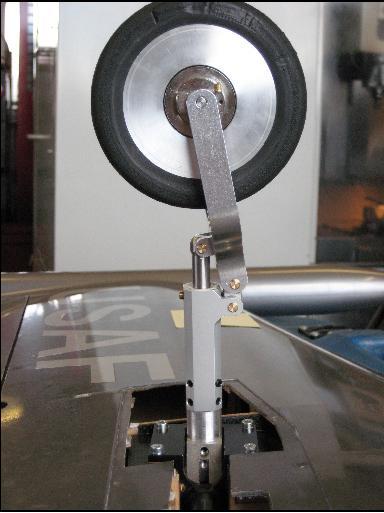

C-ARF Lightning Heavy Duty Struts

NL170-VH- SET (Left & Right) 170mm strut - $US 260

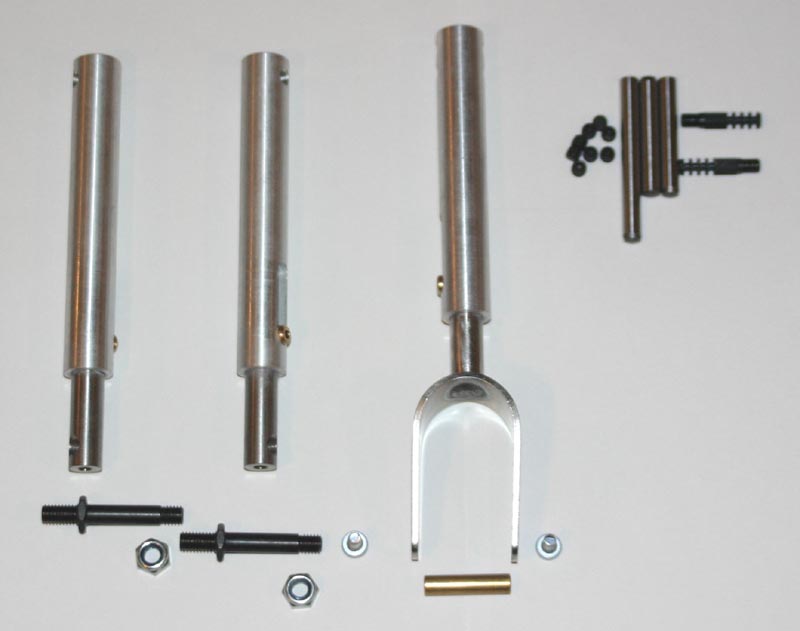

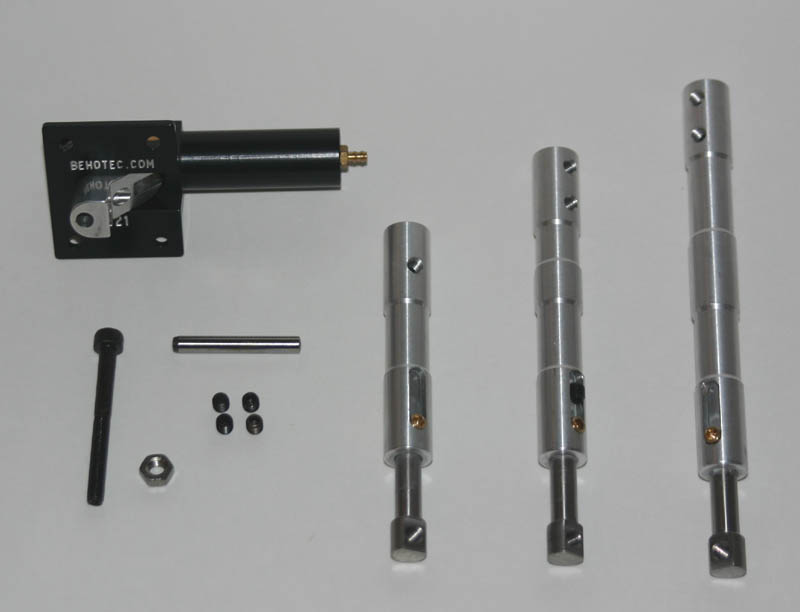

Budget Struts for C36 & C36/2

These strust are made from aircraft grade aluminium and stainless steel. Lengths are from 3 7/16 ( 87mm) up to 6 7/32 (158mm). The strut diameter is 5/8 (15 mm) and the axle diameter (6mm). Please refer to pricing below.

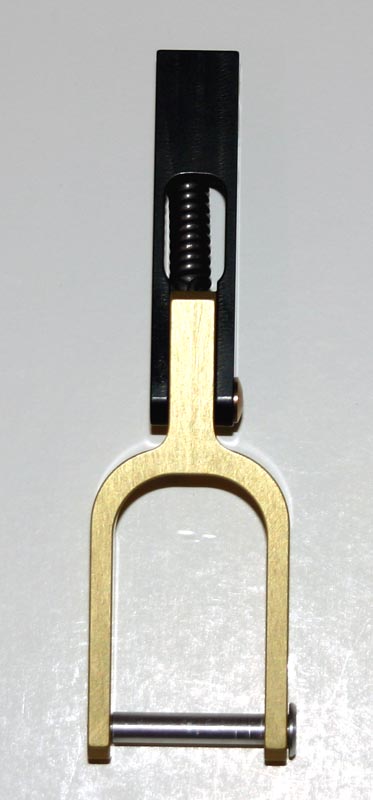

Trailing Link Struts for C36 & C36/2

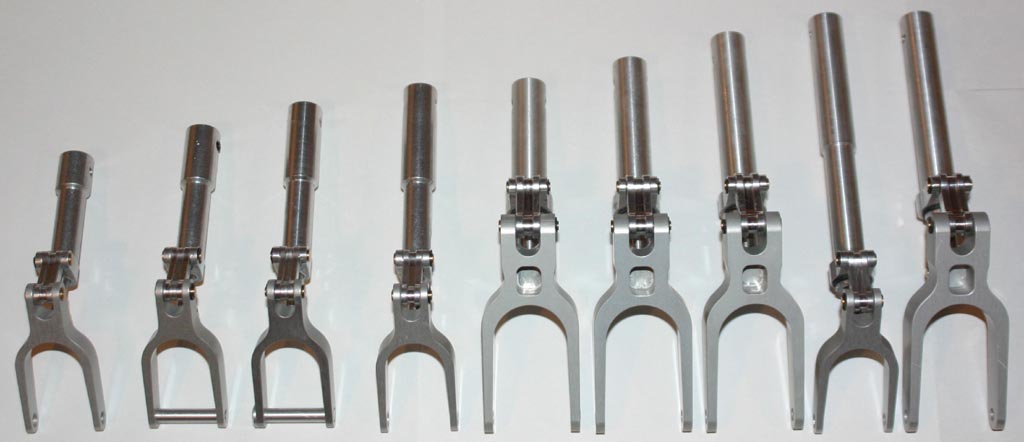

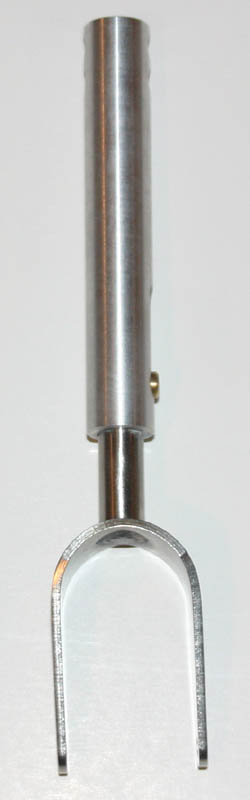

Trailing scale struts for models like the L39, Hawk and MB 339 allow a maximum wheel diameter of 3.5 (90mm). The struts are manufactured from aircraft grade anodized aluminium and stainless steel. The fork is machined from one block and not cast. The struts are available in 5.7 (145mm) to 6.9 (175 mm) lengths, having a diameter of 5/8 (15 mm)) and the fork inside width is 1 (32 mm). The axle has a diameter of (6mm). Please refer to pricing below.

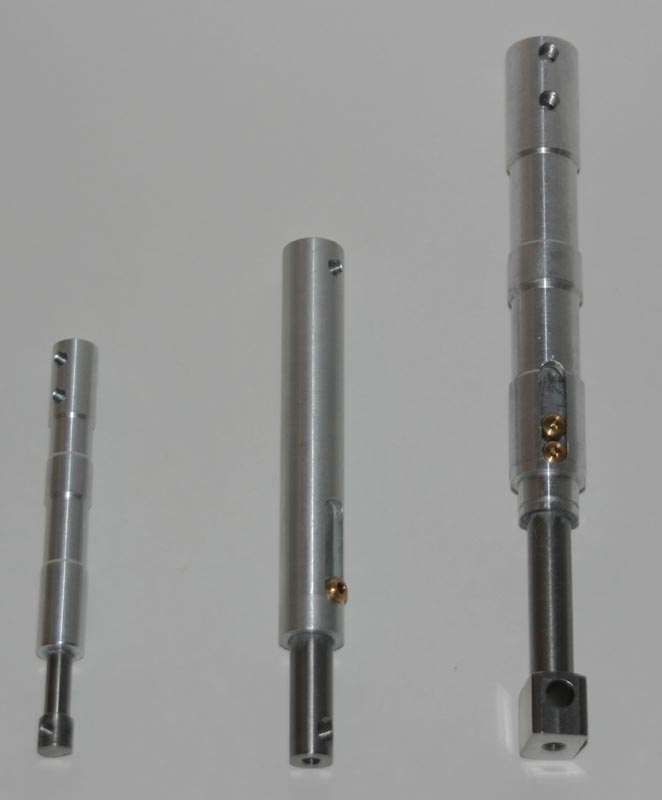

Heavy Duty Budget Oleo Struts for C50

These struts are made from aircraft grade aluminium and stainless steel. They are designed for models weighing up to 50 lbs. The lengths are from 4 7/32 (107mm) up to 7 3/32 (180mm). The strut diameter is just under (18 mm) Please refer to pricing below.

Heavy Duty Scale struts with scissor for C50

Heavy duty oleo scale struts are manufactured from grade aluminium and stainless steel. Designed for models weighing up to 50lbs, they are very strong. The lengths are from 4 7/32 (107mm) up to 7 3/32 (180mm). The strut diameter is just under (18 mm). Please refer to pricing below.





Heavy Duty Trailing Link struts for C50



Heavy duty scale trailing oleo struts for large models weighing up to 50lbs. Maximum wheel diameter is 3 1/2 (90mm). Manufactured from aircraft grade anodized aluminium and stainless steel, they can be used for main and nose gears. The struts are available in length from 5 5/8 (144mm) up to 8 (216 mm). The strut diameter is just under (18mm) and the fork width is 1 (32mm). Please refer to pricing below.

C36 and C36/2 Struts (15/6mm)

 P/N

$US

Main strut 87mm

F50-10

$35

Main strut 97mm

F50-11

$36

Main strut 107mm

F50-12

$38

Main strut 117mm

F50-13

$39

Main strut 125mm

F50-14

$40

Main strut 158mm

F50-15

$44

Main strut 150mm

F50-2

$44

Trailing strut 145mm (max wheel dia 90mm)

NL145L

$80

Trailing strut 155mm (max wheel dia 90mm)

NL155L

$81

Trailing strut 165mm (max wheel dia 90mm)

NL165L

$83

Trailing strut 175mm (max wheel dia 90mm)

NL175L

$84

Trailing strut 111mm (max wheel dia 70mm)

NLK111

$66

Trailing strut 121mm (max wheel dia 70mm)

NLK121

$67

Trailing strut 131mm (max wheel dia 70mm)

NLK131

$69

Trailing strut 141mm (max wheel dia 70mm)

NLK141

$70

Trailing strut 175mm (max wheel dia 70mm)

NLK175

$84

C50 Struts (18/8mm)

P/N

$US

Main strut 107mm

FB107-OS

$53

Main strut 125mm

FB125-OS

$56

Main strut 140mm

FB140-OS

$58

Main strut 160mm

FB160-OS

$61

Main strut 180mm

FB180-OS

$64

Main strut 200mm

FB200-OS

$72

Main strut 220mm

FB220-OS

$78

Main strut 250mm

FB250-OS

$85

Main strut 107mm with scissor

FB107

$76

Main strut 125mm with scissor

FB125

$80

Main strut 140mm with scissor

FB140

$84

Main strut 160mm with scissor

FB160

$88

Main strut 180mm with scissor

FB180

$92

Main strut 200mm with scissor

FB200

$101

Main strut 220mm with scissor

FB220

$106

Main strut 250mm with scissor

FB250

$114

Trailing strut 144mm (max wheel dia 90mm)

NL144

$92

Trailing strut 162mm (max wheel dia 90mm)

NL162

$94

Trailing strut 176mm (max wheel dia 90mm)

NL176

$97

Trailing strut 196mm (max wheel dia 90mm)

NL196

$100

Trailing strut 216mm (max wheel dia 90mm)

NL216

$102

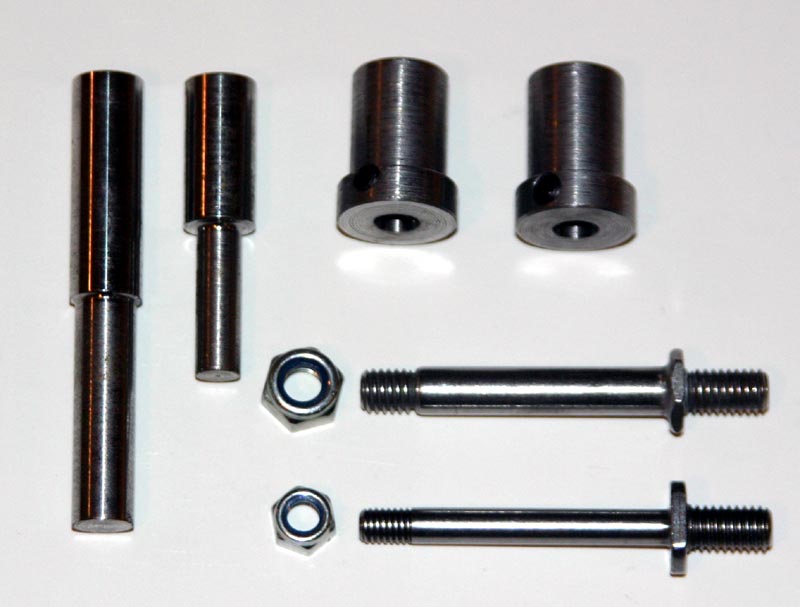

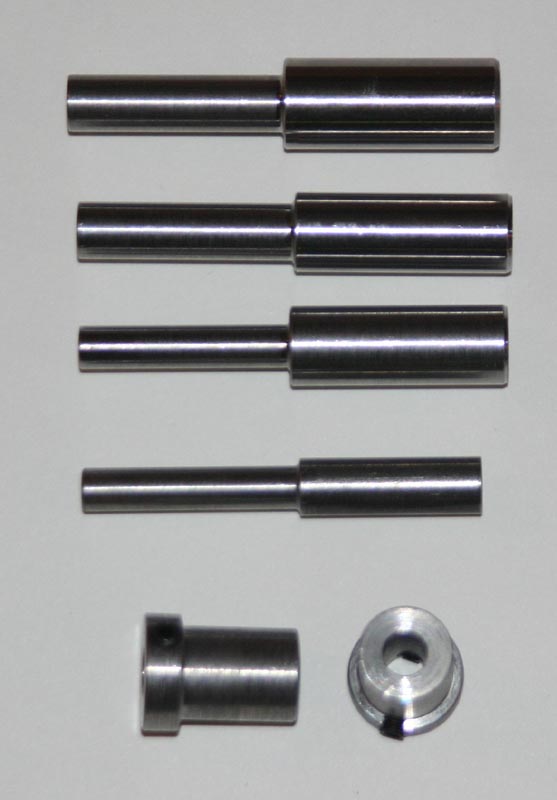

Connection Pin 6*40mm

F50-3

$2.00

Connection Pin 6*55mm

F50-4

$2.00

Connection Pin 8*50mm

FB2

$3.00

Connection Pin 8*60mm

FB3

$3.00

Connection Pin 8*70mm

FB4

$3.00

Connection Pin 8*80mm

FB5

$3.00

Strut Oleo keeper and clip: $US 15

Brass pin with E clip: $US 3
